Free standing outdoor digital signage

short description:

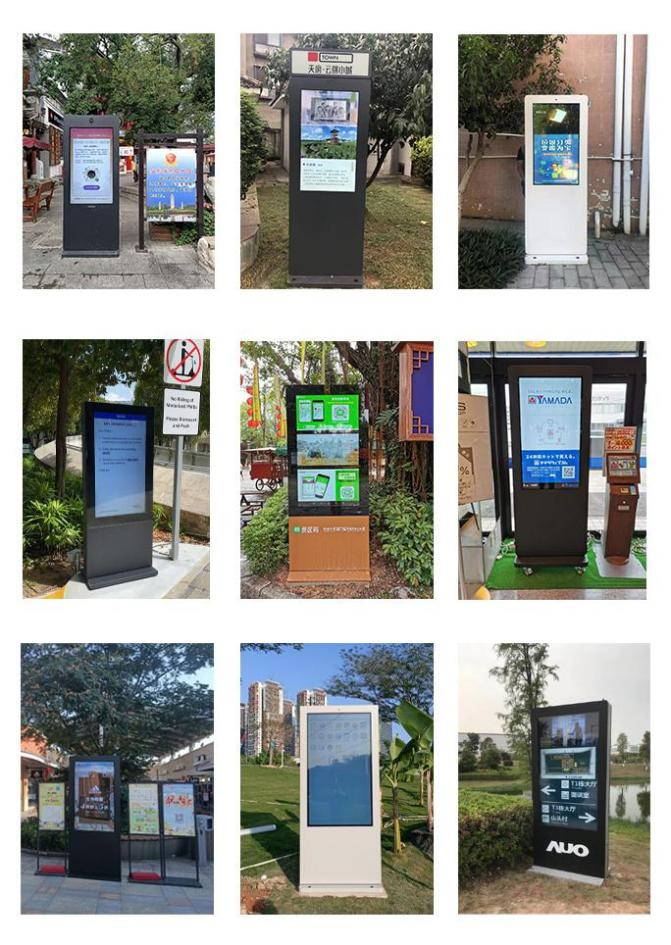

Outdoor digital Signage is commercial grade intelligent high-brightness LCD advertising device, which is widely used in scenic spots, parks, communities, streets, media business circles and other outdoor places where people gather. It is a multimedia professional audio-visual system that releases commercial advertising information and some information related to the application scene through terminal display equipment.The system product can play the advertisement information to a specific group of people in a specific place and a specific time period.

We focus on the R & D and production of outdoor intelligent LCD devices, so that our products are more competitive than other factory both in technology and in practical application.

Send email to us

Product Detail

Product Tags

Product Description

1 . Structure：

According to the standard of enclosure protection grade GB4208-93, the equipment adopts the integrated chassis and the protection grade of the constant temperature system. The enclosure meets the standard of IP65 outdoor equipment and is designed in accordance with the

following principles.

(1) The shell is made of 1.5mm SGCC galvanized steel plate, sprayed with Akzo Nobel outdoor special plastic powder, with a protection life

of more than 10 years.

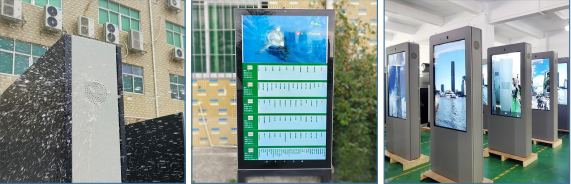

(2) The waterproof trough and air inlet and outlet of the shell structure design shall meet the protection grade of IP65.

(3) Dust-proof design: The air inlet and outlet are designed with special medium and high efficiency dust-proof filters to filter the dust in the air and prevent mosquitoes from entering the machine. The minimalist disassembly and assembly design is convenient for customers to

maintain regularly.

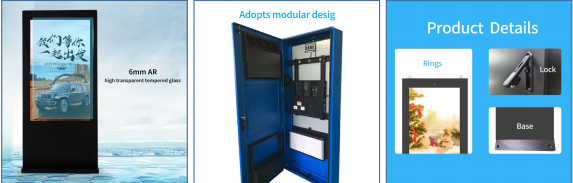

(4) The protective glass in front of the screen of the whole machine is made of 6mm AR high transparent tempered glass, with transmittance

≥ 97%, high transmittance and anti-reflection.

(5) The whole machine adopts the front and rear door opening mode, which can facilitate the maintenance of the internal display screen, heat

dissipation components and electronic parts.

(6) The whole machine adopts modular design, which is convenient for installation and maintenance.

(7) Mounting holes are designed on the bottom plate of the complete machine, which can be fixed by expansion bolts or embedded threaded

rods.

Display

(1) LG \ BOE \ AUO industrial high brightness LCD screen is adopted, with brightness up to 2000 CD/m2.
(2) High resolution, high contrast, high brightness, greatly improve the sense of picture hierarchy, can better express details.
(3) This Signage has the function of automatically eliminate residual images, prevent ultraviolet rays, insulating sunlight, automatically
sensing light, and protect the long-term use of the LCD screen in a green and energy-saving manner.
(4) It have a black level extension self-adaptive function and enhance the layering of the depth of field of the image.
(5) Outdoor professional high-brightness LCD screen is adopted, so the video image is brighter and the three-dimensional sense is stronger.
(6) 16.7 M color, the picture is more natural, and the delicate picture really without trailing.
(7) Long service lifetime, 7 * 24 hours of non-stop working, up to 50,000 hours.

Electrical

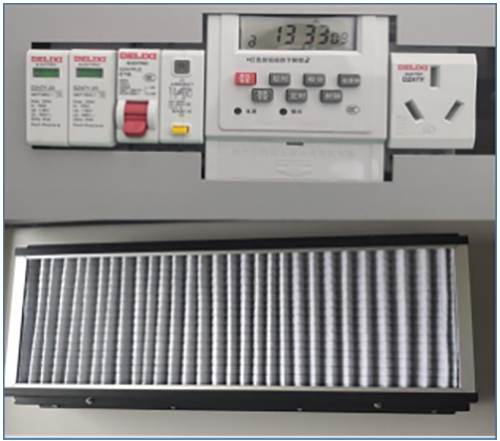

(1) Electrical protection: leakage, overload, over-voltage protection, lightning protection device, over-temperature protection, etc.
(2) Sound: Two-channel stereo surround power amplifier system with output power of 8 ohms and 10 W is adopted.

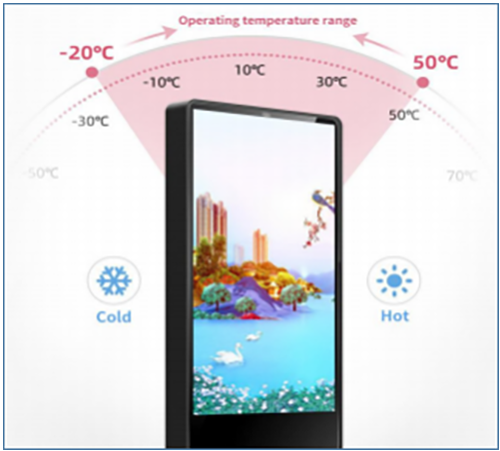

(3) The design standard of working environment temperature is + 50 ° ~ -20 ° .

(4) Adopt the principle of modular design, sustainability and maintainability design.

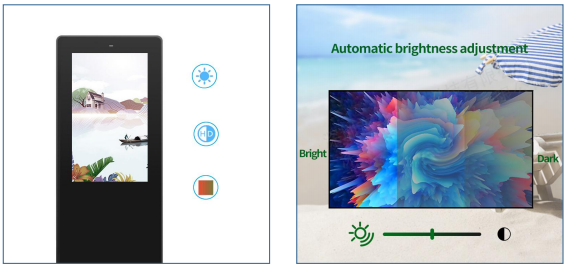

(5) Automatic Brightness adjustment: The screen backlight adopts automatic ambient light sensing to adjust the screen brightness in real time, which not only meets the clear image display in the strong direct sunlight environment, but also makes the screen not dazzling at night, saving energy and protecting the environment.

Heat dissipation

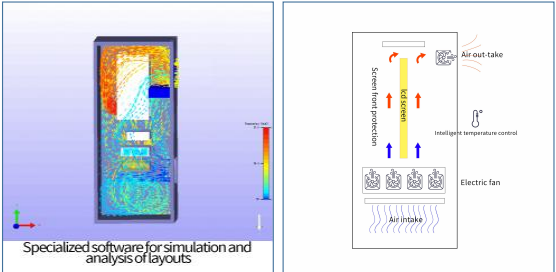

(1) Adopt integrated intelligent straight-through air cooling system and professional and special air duct cooling design.
(2) The internal air and external air of the complete machine are circulated and exchanged. After the external air enters the dust-proof net for filtration, it is divided into two air circulations before and after the screen, so ensure the internal temperature and external temperature have
8- 10 ℃ difference.
(3) Independent research and development of fan speed control board can automatically adjust the fan speed according to the internal
temperature of the machine.
(4) Equipped with high temperature automatic power-off protection function, when the internal temperature of the machine is abnormally high and exceeds the normal working range, the control system will provide power-off protection for the display screen and other major
components, while the fan continues to operate at full speed to dissipate heat, fully protecting the display screen and major components.

Product parameter configuration

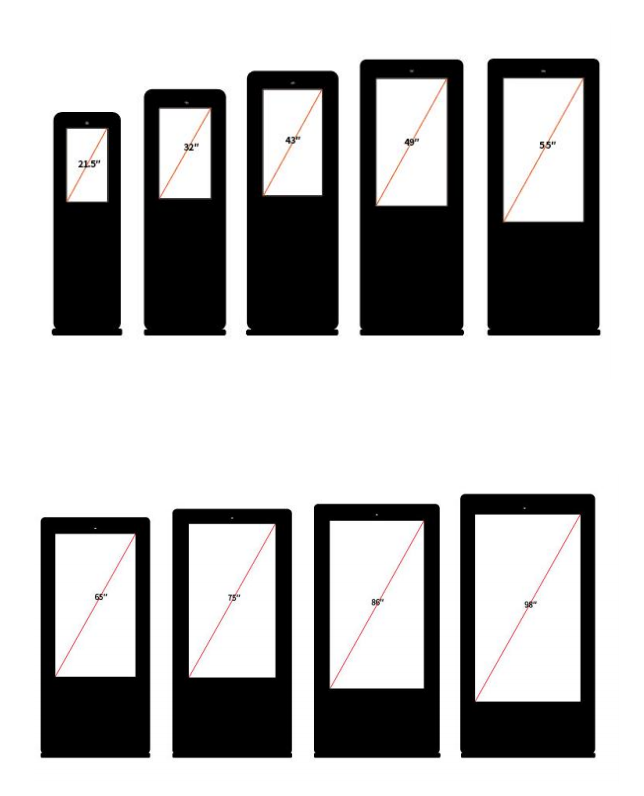

Model		21.5	32	43	49
Panel parameters	Backlight type	LED direct type
	Display size (mm)	476*268	697*392	941*530	1209*680
	Display scale	16:9
	Resolution	1920* 1080
	Brightness (CD/㎡)	1500cd/㎡	2000cd/㎡	2000cd/㎡	2000cd/㎡
	Contrast	3500:1
	Viewing angle	178°（H）/178°（V）
	Response Time (ms)	6ms
	Service life (H)	50000H
Configuratio n parameters	Mainboard	Default Android RK3288, (optional 68676 driver and x86 motherboard and others)
	RAM	1G/2G/4G/8G DDR3
	ROM	8g/16g/32g, etc.
	Operating System	Android 7.1
	Video format	MPG, MPG- 1, MPG-2, MPG-4, AVI, MP4, TS, MKV, WMV etc
	Picture format	GIF, JPEG, PNG, BMP
	Audio output	2* 8Ω 10W
	Other formats	MP3, 24bit linear PCM 7. 1 PDF/RSS News/Weather
	Networking mode	LAN Wired, WiFi Wireless
	Update method	Network remote update, U disk update
	Program upgrade	Remote upgrade, remote control upgrade
	Timed power on and off	Any time period is supported
Optional	Networking mode	4G wireless networking
	Touch mode	G + F nano touch film, 10-point touch, safe and reliable (optional configuration)
Work environment	Operating temperature	-20℃~50℃
	Storage temperature	- 10℃~60℃
	Operating humidity	5%～90%
	Storage humidity	5%～100%
	Noise	<65dB
Mechanical parameters	Overall dimension (mm)	1600500 150	1800600200	1800750200	2000810200
	Weight of complete machine(kg)	90	100	110	130
	Package size (mm)	1700600250	1900850300	1900970300	2100* 1030*300
	Degree of protection	IP65
	Input voltage	AC100-240V~(+/- 10%),50/60Hz
	Rated power consumption (w)	≤165	≤220	≤280	≤360

Model		55	65	75	86	98
Panel parameters	Backlight type	LED direct type
	Display size (mm)	476*268	697*392	941*530	1209*680	2158* 1214
	Display scale	16:9
	Resolution	3840*2160	3840*2160	3840*2160	3840*2160	3840*2160
	Brightness (CD/㎡)	2000	2000	2000	2000	2000
	Contrast	3500:1
	Viewing angle	178°（H）/178°（V）
	Response Time (ms)	6ms
	Service life (H)	50000H
Configuration parameters	Mainboard	Default Android RK3288, (optional 68676 driver and x86 motherboard and others)
	RAM	1G/2G/4G/8G DDR3
	ROM	8g/16g/32g, etc.
	Operating System	Android 7.1
	Video format	MPG, MPG- 1, MPG-2, MPG-4, AVI, MP4, TS, MKV, WMV etc
	Picture format	GIF, JPEG, PNG, BMP
	Audio output	2* 8Ω 10W
	Other formats	MP3, 24bit linear PCM 7. 1 PDF/RSS News/Weather
	Networking mode	LAN Wired, WiFi Wireless
	Update method	Network remote update, U disk update
	Program upgrade	Remote upgrade, remote control upgrade
	Timed power on and off	Any time period is supported
Optional	Networking mode	4G wireless networking
	Touch mode	G + F nano touch film, 10-point touch, safe and reliable (optional configuration)
Work environment	Operating temperature	-20℃~50℃
	Storage temperature	- 10℃~60℃
	Operating humidity	5%～90%
	Storage humidity	5%～100%
	Noise	<65dB
Mechanical parameters	Overall dimension (mm)	2100890220	2000* 1060*220	2300* 1140*220	2900* 1280*220	2900* 1520*350
	Weight of complete machine(kg)	150	190	270	350	420
	Package size (mm)	2150* 1110*300	2050* 1280*360	2350* 1360*360	2950* 1500*400	2950* 1680*530
	Degree of protection	IP65
	Input voltage	AC100-240V~(+/- 10%),50/60Hz
	Rated power consumption (w)	≤400	≤600	≤1200	≤1800	≤2400
